News Releases
December 14, 2008
NIPPON MUKI CO., LTD.

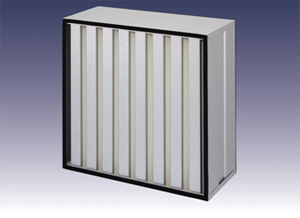

New Product “ATOMS Ultra Low Pressure Drop Filter”
| Specifications | Standard specification | ||
|---|---|---|---|
| Model | ATMPK-56-P-E | ATMPK-70-P-E | |
| Size | 610×610×290 | ||
| Air volume(m3/min) | 56 | 70 | |
| pressure drop(Pa) | 170±15 | 245±20 | |
| Collection efficiency(%)at0.3μm | Collection Efficiency >99.97% | Collection Efficiency >99.97% | |
| Materials | Media | Glass Paper | |
| Frame | Galvanized steel | ||
| Sealant | Polyurethane | ||
| Ribbon | Hotmelt | ||
| Gasket | EPDM | ||
| Weight(kg) | Approx 18 | Approx 18 | |
| Conditions | Temperature<60℃ Humidity<95%(No dewfall) | ||
*These products don't meet 99.99% over collection efficiency and scanning test requirements.
Compared to conventional products, these new high volume filters have a greatly reduced initial pressure drop. This means a more energy saving over the life of the filter, which translates into a reduction in CO2 emissions and a lower environmental load. The new ATMPK filters can be used a wide range of applications, from the processing of outside air destined for cleanrooms, to air conditioning for building.
Features of our new ATMPK product line
1. Air flow 56 m3/min. model(ATMPK-56-P-E)
- Compared with our existing high-volume HEPA filter (ATMC-56-E48T), this new model has an initial pressure drop of about 75 Pa (some 30% lower).
- The ATMPK-56-P-E saves energy and reduces CO2 emissions by about 35% (compared with our conventional filters).
2. Air flow 70 m3/min. model (ATMPK-70-P-E)
- We developed this filter to be capable of processing 70m3 of air per minute through a 610x610mm aperture with a pressure drop of 245Pa.
- This filter saves energy and space by reducing the numbers of filter units required inside the air-conditioning system.
- The ATMPK-70-P-E saves energy and reduces CO2 emissions by about 35% (compared with our conventional filters).
Applications
- For cleanrooms that require energy and space savings
- For processing intake air in high volume air conditioning sytems for clean room
- Outlet air in conventional clean rooms
