Circulating air processing charcoal
PureChemix G
Mini-pleats
![[photo]Circulating air processing charcoal (ACGL)](img/pict_acgl_acgm01.jpg)
![[photo]Circulating air processing charcoal ()](img/pict_acgl_acgm02.jpg)
PureChemix G is chemical filter with granular activated carbon wrapped with nowoven. Increased adsorbing capacity made it longer service life, compared with conventional type. Superior adsorbing character of activated carbon made its efficiency higher.
Standard specification
| Shape | Type | Size(mm) Height x Width x Depth |
Rated air velocity (m/s) |
Rated air volume (m3/min) |
Pressure drop (Pa) |
Gas removal efficiency (%) |
Weight (kg) |
|---|---|---|---|---|---|---|---|
| Mini-pleats type | ACGL-10-R-E-* | 610 x 610 x 75 | 0.5 | 10 | Approx. 40 | Approx. 90 | 5.5 |
| ACGL-20-R-E-* | 610 x 1220 x 75 | 20 | 10.5 | ||||
| ACGL-10-RS-E-* | 610 x 610 x 65 | 10 | Approx. 30 | 5.0 | |||
| ACGL-20-RS-E-* | 610 x 1220 x 65 | 20 | 9.5 | ||||
| ACGL-7-S-E-* | 610 x 610 x 50 | 0.35 | 7 | Approx. 15 | 4.0 | ||
| ACGL-14-S-E-* | 610 x 1220 x 50 | 14 | 7.0 | ||||
| Separator type | ACGM-56-E42-* | 610 x 610 x 290 | 2.9 | 56 | Approx. 98 | Approx. 90 | 16.5 |
| ACGM-56H-E42-* | 610 x 305 x 290 | 28 | 9.5 |
Gas removal efficiency depends on air velocity, gas to be removed and temperature.
Other sizes are also available.

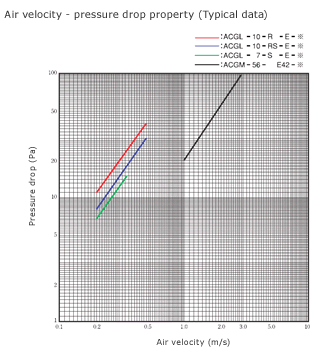

Performance
![[figure]Circulating air processing charcoal](img/graph_acgl_acgm.gif)
Separator type structure drawing(ACGM)
![[figure]Separator type structure drawing(ACGM)](img/fig_acgl_acgm01.gif)
Mini-pleats type structure drawing(ACGL)
![[figure]Mini-pleats type structure drawing(ACGL)](img/fig_acgl_acgm02.gif)
