Standard type HEPA

Mini-pleats

[photo]Standard type HEPA

[photo]Standard type HEPA

[photo]Standard type HEPA

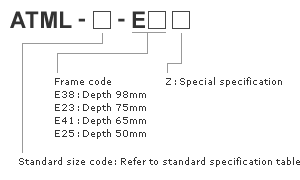

Type
ATML
  1. Collecting 99.99% or higher of 0.3µm particles
  2. Due to low weight, it is easy to install and replace.

Standard specification

Type Size(mm)
Height x Width x Depth		 Rated air velocity
(m/s)		 Rated air volume
(m3/min)		 Pressure drop (Pa) Collection efficiency
(%)		 Weight
(kg)
Initial Final
ATML-10-E38 610 x 610 x 98 0.5 10.0 84 294 99.99
at 0.3µm		 5.0
ATML-20-E38 610 x 1220 x 98 20.5 9.0
ATML-10-E23 610 x 610 x 75 10.0 88 4.5
ATML-20-E23 610 x 1220 x 75 20.5 8.0
ATML-10-E41 610 x 610 x 65 10.0 98 4.0
ATML-20-E41 610 x 1220 x 65 20.5 7.5
ATML-10-E25 610 x 610 x 50 10.0 127 3.5
ATML-20-E25 610 x 1220 x 50 20.5 6.0

Remarks : Products with face guard at outlet side is also available at the same performance.

Other sizes are also available.

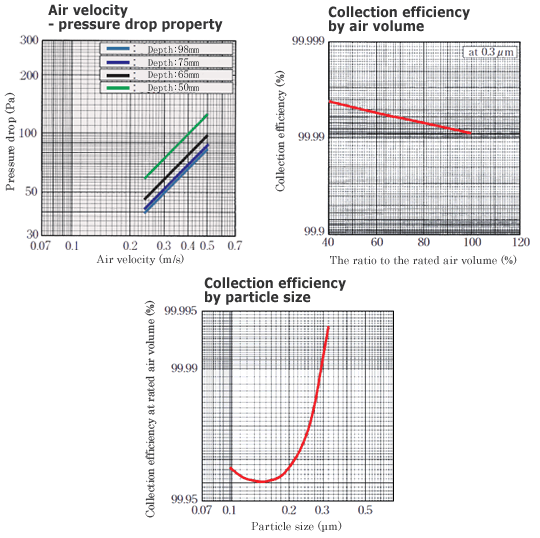

Performance

[graph]Standard type HEPA
