Standard type ULPA

Mini-pleats

[photo]Standard type ULPA

[photo]Standard type ULPA

[photo]Standard type ULPA

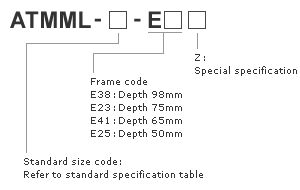

Type
ATMML
  1. ULPA filter collecting 99.9995%(5N5) or higher of 0.1µm particle
  2. Due to low weight, it is easy to install and replace.

Standard specification

Type Size(mm)
Height x Width x Depth		 Rated air velocity
(m/s)		 Rated air volume
(m3/min)		 Pressure drop (Pa) Collection efficiency
(%)		 Weight
(kg)
Initial Final
ATMML-10-E38 610 x 610 x 98 0.5 10.0 103 294 99.9995
at 0.1-0.15µm		 5.0
ATMML-20-E38 610 x 1220 x 98 20.5 9.0
ATMML-10-E23 610 x 610 x 75 10.0 108 4.5
ATMML-20-E23 610 x 1220 x 75 20.5 8.0
ATMML-10-E41 610 x 610 x 65 10.0 128 99.999
at 0.1-0.15µm		 4.0
ATMML-20-E41 610 x 1220 x 65 20.5 7.5
ATMML-7-E25 610 x 610 x 50 0.35 7.0 3.5
ATMML-14-E25 610 x 1220 x 50 14.5 6.0

Remark 1 : Products with face guard at outlet side is also available at the same performance.

Other sizes are also available.

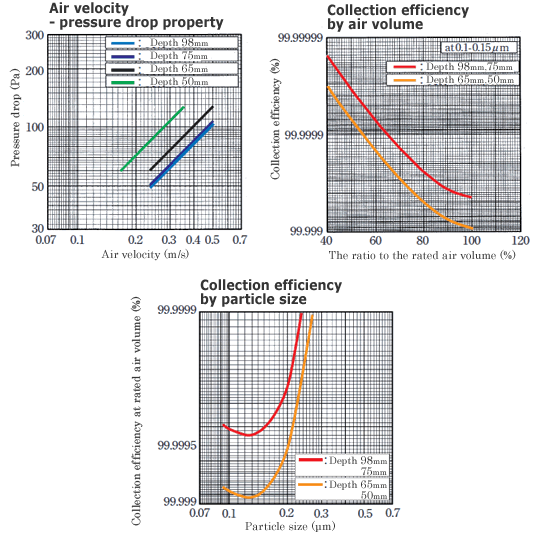

Performance

[graph]Standard type ULPA
