400°C heat resistant HEPA

Standard

[photo]400°C heat resistant HEPA

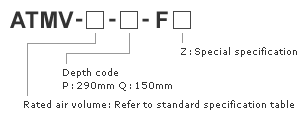

Type
ATMV
  1. HEPA filter collecting 99.97% or higher of 0.3µm particle
  2. No performance deterioration even after long usage due to special glass wool media
  3. As glass wool is wrapped with SUS wire net, it cannot be damaged.

Standard specification

Type Size(mm)
Height x Width x Depth		 Rated air volume
(m3/min)		 Pressure drop (Pa) Collection efficiency
(%)		 Weight
(kg)
Initial Final
ATMV-6-P-F 500 x 500 x 290 6 245 490 99.97
at 0.3µm		 17
ATMV-10-P-F 610 x 610 x 290 10 21
ATMV-4-Q-F 500 x 500 x 150 4 11
ATMV-7-Q-F 610 x 610 x 150 7 13

Other sizes are also available.

Performance

[graph]400°C heat resistant HEPA

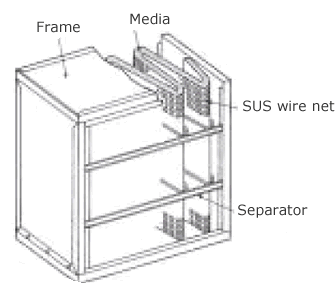

Structure drawing

[figure]400°C heat resistant HEPA
