Boron free U-ULPA
Boron free
Mini-pleats
![[photo]Boron free U-ULPA](img/pict_bfgl.jpg)
In semiconductor and LCD industry, boron generation for fiber glass media filter is problem. For solving this problem, we developed boron free filter. This filter does not generate boron, low pressure drop and high collecting efficiency. Furthermore it has superior chemical strength and can be used for wide application.
Standard specification
| Type | Size(mm) Height x Width x Depth |
Rated air velocity (m/s) |
Rated air volume (m3/min) |
Pressure drop (Pa) | Collection efficiency (%) |
Weight (kg) |
|
|---|---|---|---|---|---|---|---|
| Initial | Final | ||||||
| BFGL-10-E38 | 610 x 610 x 98 | 0.5 | 10.0 | 83 | 294 | 99.99995 at 0.1-0.2µm |
5.0 |
| BFGL-20-E38 | 610 x 1220 x 98 | 20.5 | 9.0 | ||||
| BFGL-10-E41 | 610 x 610 x 65 | 10.0 | 95 | 4.0 | |||
| BFGL-20-E41 | 610 x 1220 x 65 | 20.5 | 7.5 | ||||
| BFGL-7-E25 | 610 x 610 x 50 | 0.35 | 7.0 | 95 | 3.5 | ||
| BFGL-14-E25 | 610 x 1220 x 50 | 14.5 | 6.0 | ||||
Other sizes are also available.

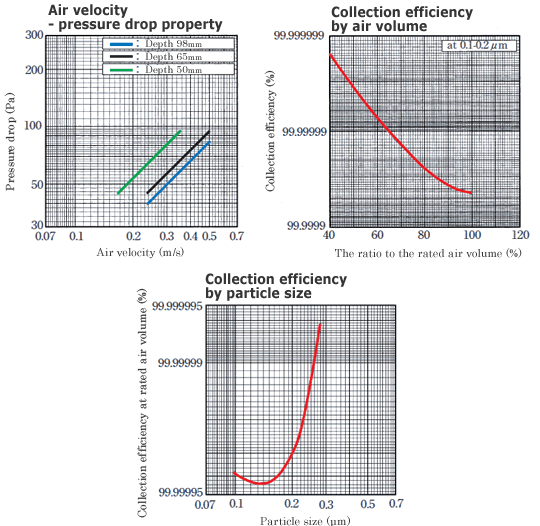

Performance
![[graph]Boron free U-ULPA](img/graph_bfgl.gif)
