Low boron U-ULPA
Low boron
Mini-pleats
![[photo]Low boron U-ULPA](img/pict_bggl01.jpg)
![[photo]Low boron U-ULPA](img/pict_bggl02.jpg)
![[photo]Low boron U-ULPA](img/pict_bggl03.jpg)
Used of low boron fiber glass media, it has low boron generation and low price compared with PTFE filter. U-ULPA, ULPA and HEPA grade are available.
Standard specification
| Type | Size(mm) Height x Width x Depth |
Rated air velocity (m/s) |
Rated air volume (m3/min) |
Pressure drop (Pa) | Collection efficiency (%) |
Weight (kg) |
|
|---|---|---|---|---|---|---|---|
| Initial | Final | ||||||
| BGGL-10-E38 | 610 x 610 x 98 | 0.5 | 10.0 | 128 | 294 | 99.99995 at 0.1-0.2µm |
5.0 |
| BGGL-20-E38 | 610 x 1220 x 98 | 20.5 | 9.0 | ||||
| BGGL-10-E23 | 610 x 610 x 75 | 10.0 | 147 | 4.5 | |||
| BGGL-20-E23 | 610 x 1220 x 75 | 20.5 | 8.0 | ||||
| BGGL-10-E41 | 610 x 610 x 65 | 10.0 | 157 | 4.0 | |||
| BGGL-20-E41 | 610 x 1220 x 65 | 20.5 | 7.5 | ||||
| BGGL-7-E25 | 610 x 610 x 50 | 0.35 | 7.0 | 3.5 | |||
| BGGL-14-E25 | 610 x 1220 x 50 | 14.5 | 6.0 | ||||
Remarks : Products with face guard at outlet side is also available at the same performance.

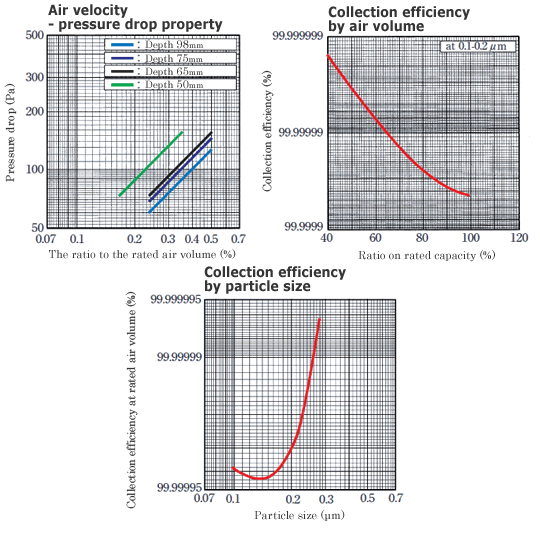

Performance
![[graph]Low boron U-ULPA](img/graph_bggl.gif)
