[photo]Heat resistant pre filter (fiber glass)

Heat resistant pre-filter made of fiberglass. 2 types with different basis weight are available.

Type	Size(mm) Height x Width x Depth	Rated air volume (m³/min)		Initial pressure drop (Pa)		Photo scattering accmulation method (%)
Type	Size(mm) Height x Width x Depth	1.5m/sec	2.5m/sec	1.5m/sec	2.5m/sec	1.5m/sec	2.5m/sec
080	500 x 500 x 50	18	30	157	343	54	55
040	500 x 500 x 50	18	30	314	627	63	53.5

Other sizes are also available.

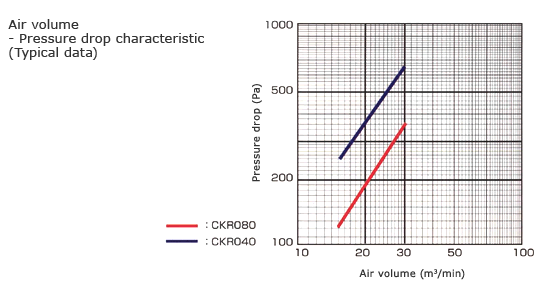

[graph]Heat resistant pre filter (fiber glass)
