Circulating air processing ion-exchange resin filter
IoChemix
Mini-pleats
![[photo]Circulating air processing ion-exchange resin filter (For acid gaseous materials)](img/pict_ecsl01.jpg)
![[photo]Circulating air processing ion-exchange resin filter (For basic gaseous materials)](img/pict_ecsl02.jpg)
IoChemix is chemical filter with ion-exchange resin media. It is effective for removing acid and base.
Standard specification
| Type | Size(mm) Height x Width x Depth |
Rated air velocity (m/s) |
Rated air volume (m3/min) |
Pressure drop (Pa) |
Gas removal efficiency (%) |
Weight (kg) |
|---|---|---|---|---|---|---|
| ECSL-10-R-E-* | 610 x 610 x 75 | 0.5 | 10 | Approx. 35 | Approx. 90 | 6.0 |
| ECSL-10-RS-E-* | 610 x 610 x 65 | Approx. 20 | 5.0 | |||
| ECSL-7-S-E-* | 610 x 610 x 50 | 0.35 | 7 | Approx. 12 | 4.5 |
Gas removal efficiency depends on air velocity, gas to be removed and temperature.
Other sizes are also available.

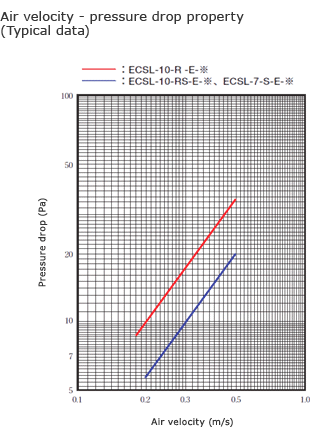

Performance
![[graph]Circulating air processing ion-exchange resin filter](img/graph_ecsl.gif)
Structure drawing
![[figure]Circulating air processing ion-exchange resin filter](img/fig_ecsl.gif)
