Super low pressure drop ASHRAE (nonwovens)
Elelta
Standard
![[photo]Super low pressure drop ASHRAE (nonwovens)](img/pict_eml.jpg)
By the tendency of space saving of air conditioner and reducing maintenance cost, filters for buildings and industries should be compact and low pressure drop type. For meeting this demand, we developed thin ASHRAE grade filter with super low pressure drop by processing electlet nonwoven into mini-pleats shape.
Standard specification
| Type | Size(mm) Height x Width x Depth |
Rated air volume (m3/min) |
Pressure drop (Pa) | Collection efficiency (%) |
Weight (kg) |
|
|---|---|---|---|---|---|---|
| Initial | Final | |||||
| EML-36-90 | 500 x 500 x 65 | 36 | 83 | 294 | 90 | 2.5 |
| EML-56-90 | 610 x 610 x 65 | 56 | 83 | 294 | 90 | 3.0 |
| EML-56H-90 | 610 x 305 x 65 | 28 | 83 | 294 | 90 | 2.0 |
| EML-36-65 | 500 x 500 x 65 | 36 | 74 | 294 | 65 | 2.5 |
| EML-56-65 | 610 x 610 x 65 | 56 | 74 | 294 | 65 | 3.0 |
| EML-56H-65 | 610 x 305 x 65 | 28 | 74 | 294 | 65 | 2.0 |
Other sizes are also available.

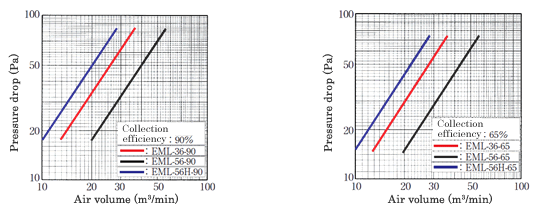

Performance
![[graph]Super low pressure drop ASHRAE (nonwovens)](img/graph_eml.gif)
