[photo]400°C heat resistant Quasi-HEPA

Quasi-HEPA filter collecting 90% or higher of 0.5µm particle
No performance deterioration even after long usage due to special glass wool media
As glass wool is wrapped with SUS wire net, it cannot be damaged.

Type	Size(mm) Height x Width x Depth	Rated air volume (m³/min)	Pressure drop (Pa)		Collection efficiency (%)	Weight (kg)
Type	Size(mm) Height x Width x Depth	Rated air volume (m³/min)	Initial	Final	Collection efficiency (%)	Weight (kg)
GCV-31-P-L-F	610 x 610 x 290	31	245	490	90 at 0.5-1µm	21
GCV-17-Q-L-F	610 x 610 x 150	17	245	490	90 at 0.5-1µm	13

Other sizes are also available.

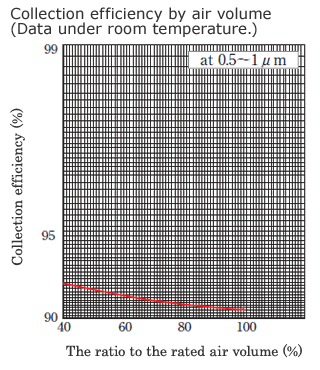

[graph]400°C heat resistant Quasi-HEPA

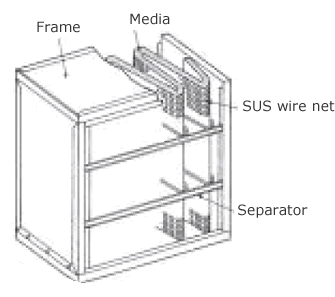

[figure]400°C heat resistant Quasi-HEPA
