Sea air processing ASHRAE
Sal-stop
Standard/Large air volume
![[photo]Sea air processing ASHRAE](img/pict_sltk.jpg)
Sal-stop filter collects 95% of salt particle. Even if collected salt particles melt by humidity, Sal-stop would not release it.
Standard specification

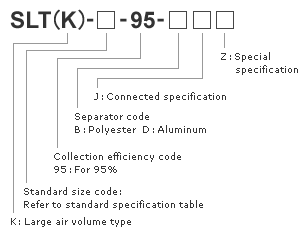

| Type | Size(mm) Height x Width x Depth |
Rated air volume (m3/min) |
Pressure drop (Pa) | Collection efficiency (%) |
Weight (kg) |
|
|---|---|---|---|---|---|---|
| Initial | Final | |||||
| SLT-36-95-* | 500 x 500 x 290 | 36 | 167 | 343 | 95 | 10.0 |
| SLT-56-95-* | 610 x 610 x 290 | 56 | 167 | 343 | 95 | 11.0 |
| SLT-56H-95-* | 610 x 305 x 290 | 28 | 167 | 343 | 95 | 8.0 |
| SLT-18-95-* | 500 x 500 x 150 | 18 | 118 | 294 | 95 | 5.0 |
| SLT-28-95-* | 610 x 610 x 150 | 28 | 118 | 294 | 95 | 6.0 |
| SLTK-70-95DT | 610 x 610 x 290 | 70 | 176 | 343 | 95 | 13.0 |
| SLTK-70H-95DT | 610 x 305 x 290 | 35 | 176 | 343 | 95 | 9.0 |
Other sizes are also available.

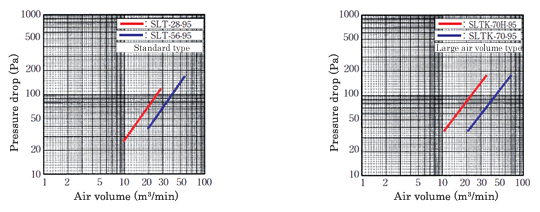

Performance
![[graph]Sea air processing ASHRAE](img/graph_sltk.gif)
