Low organic/boron ULPA
Nouvelle
Mini-pleats
![[photo]Low organic/boron ULPA](img/pict_tgmml.jpg)
Keeping organic and boron generation low, Nouvelle filter is our highest grade low outgassing filter. U-ULPA, ULPA and HEPA grade are available.
Standard specification
| Type | Size(mm) Height x Width x Depth |
Rated air velocity (m/s) |
Rated air volume (m3/min) |
Pressure drop (Pa) | Collection efficiency (%) |
Weight (kg) |
|
|---|---|---|---|---|---|---|---|
| Initial | Final | ||||||
| TGMML-10-E38 | 610 x 610 x 98 | 0.5 | 10.0 | 118 | 294 | 99.9995 at 0.1µm |
5.0 |
| TGMML-20-E38 | 610 x 1220 x 98 | 20.5 | 9.0 | ||||
| TGMML-10-E23 | 610 x 610 x 75 | 10.0 | 127 | 4.5 | |||
| TGMML-20-E23 | 610 x 1220 x 75 | 20.5 | 8.0 | ||||
| TGMML-10-E41 | 610 x 610 x 65 | 10.0 | 147 | 4.0 | |||
| TGMML-20-E41 | 610 x 1220 x 65 | 20.5 | 7.5 | ||||
| TGMML-7-E25 | 610 x 610 x 50 | 0.35 | 7.0 | 3.5 | |||
| TGMML-14-E25 | 610 x 1220 x 50 | 14.5 | 6.0 | ||||
Other sizes are also available.

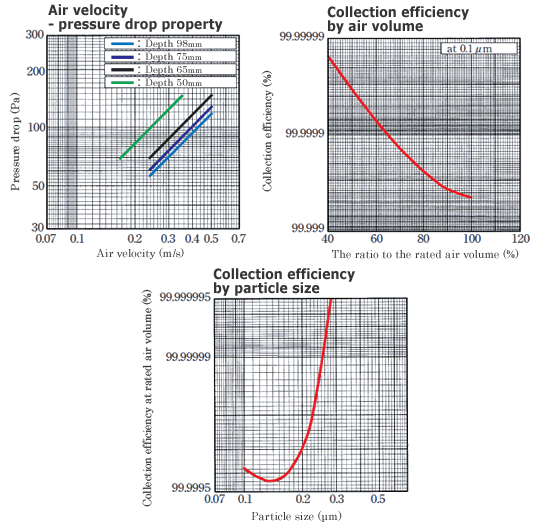

Performance
![[graph]Low organic/boron ULPA](img/graph_tgmml.gif)
