Siliglass, a heat-resistant glass fiber able to withstand continuous long use even at 1000°C
What is
SILIGLASS
*Free samples are available, so please contact us if you would like one.
*Specifications can be customized according to the customer's usage.
(However, there are restrictions on production volume.)
Features of SILIGLASS
- High silicate glass fiber with 96% or more SiO2 (silicon dioxide)
- Contains no asbestos
- Retains suppleness even after continuous use at high temperatures of 1000℃
- Heat shrinkage rate is small
- Excellent flame resistance
- Low dielectric constant and excellent electrical insulation
Applications of
SILIGLASS
- Heat-resistant coating material for blast furnaces and heating furnaces
- Base material for fire-resistant and heat-resistant curtains
- Welding spark prevention sheet
- Base material for high temperature FRP
- Conveyor roller coating material for tempered glass production line
Form of SILIGLASS
Cross / Sleeve / Tape / Rope / Yarn
Siliglass is a high quality heat-resistant material used as injection nozzle base material in Japan’s HⅡ rocket. It is further used in fusion furnaces, heating furnaces, fireproof/fire-resistant curtains, and more.
- Siliglass, a heat-resistant glass fiber able to withstand continuous long use even at 1000°C

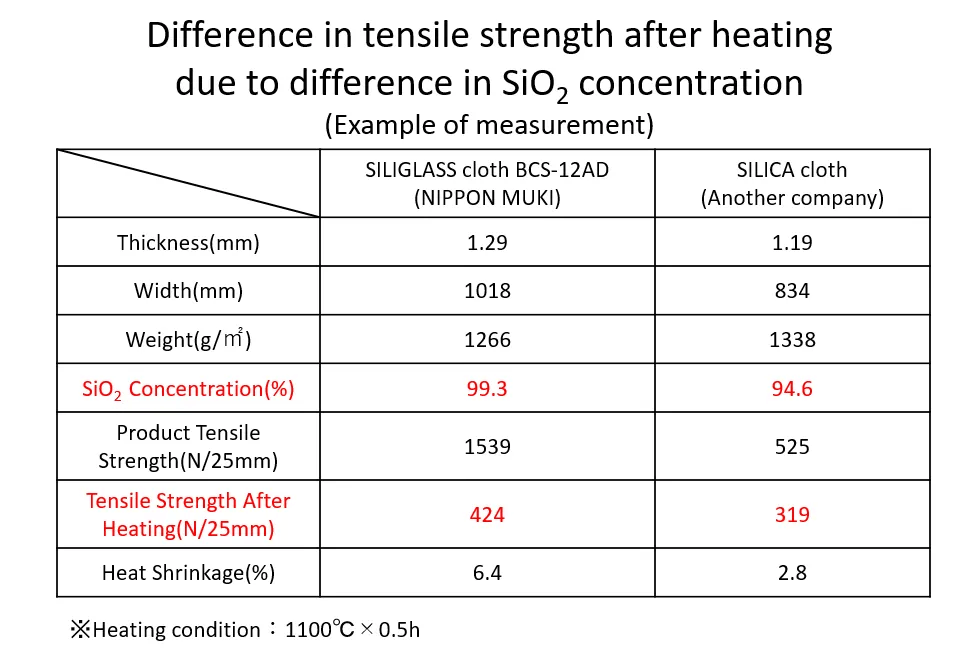

01 High post-heating tensile strength
Siliglass features a higher SiO2 purity than that of other companies' products, letting it maintain high tensile strength even after heating (1100°C at 0.5 hours).
02 Maintains flexibility even after heating
Due to its high SiO2 purity, Siriglass' fibers do not harden even after heating and maintain flexibility.
03 Varied processing technologies
The surface of the cloth can be processed (resin coating/metal foil processing) and shaped through sewing.
This sleeve can be used as a roller cover for tempered glass furnaces and as a heat-resistant wire coating material.

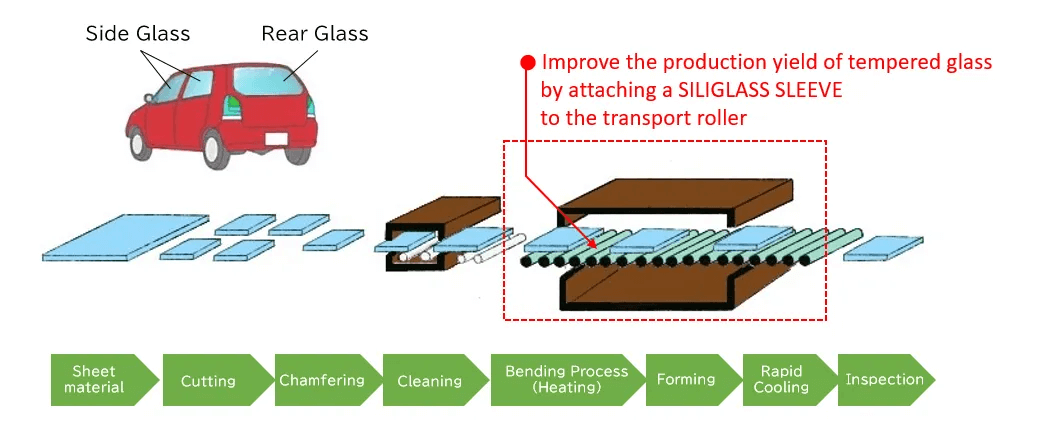

01 Conveyor roller coating material for automobile tempered glass
Siliglass Sleeves are used in glass manufacturing plants around the world as a coating material for transport rollers on automobile tempered glass manufacturing lines.
It provides cushioning between the rollers and the tempered glass to improve glass yield.
Our strengths in products, technology, and warranty
Our long history and high-reliability quality
Since its development as Japan's first silica fiber in 1958, Siliglass has met needs for high quality and reliability as the first domestically produced heat insulating material for HII rockets, nuclear power plants, and other applications.
Our guarantee of silica (SiO2) purity
We are able to measure the silica component concentration of every product lot for submission as a testing report to accompany shipment. Please feel free to inquire.
Our track record of export
We have a track record of exports to glass and steel manufacturers in the United States, Europe, and Asian countries.
Sewing
Sewing Siliglass Cloth enables the processing of heat-insulating molded products into a variety of forms.
Contribution to energy saving
Use of Siliglass Cloth in the high-temperature parts of semiconductor and other manufacturing equipment can improve thermal efficiency and contribute to energy saving.
Adaptability to varied forms
In addition to our cloth, tape, sleeves, rope, and yarn, we also offer powdered materials and chopped fibers as filler, suited to customers' needs.
